Description

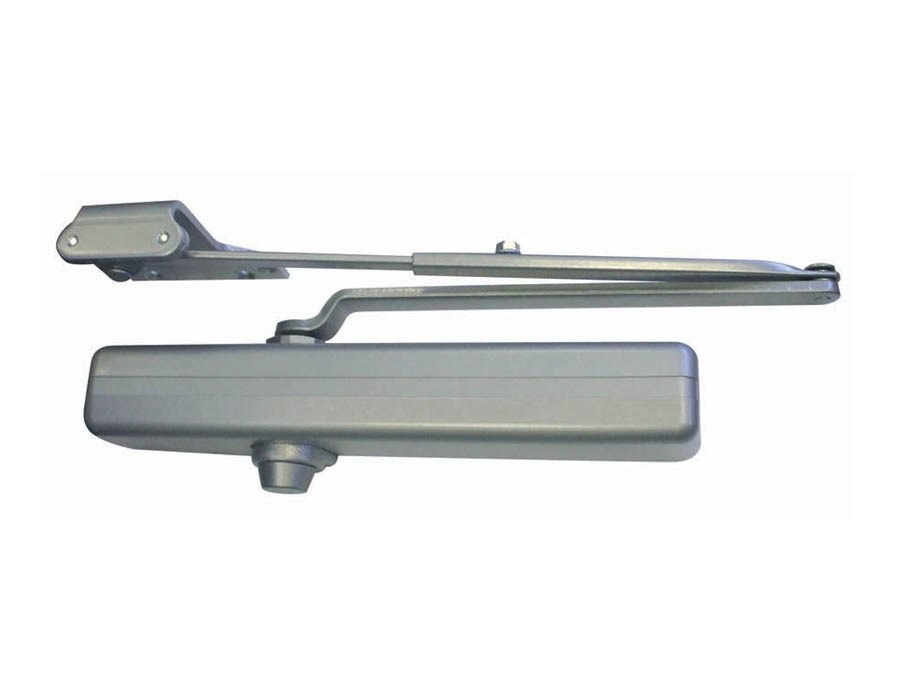

LCN 1461 Overhead door closers. Adjustable Power Size 2-5

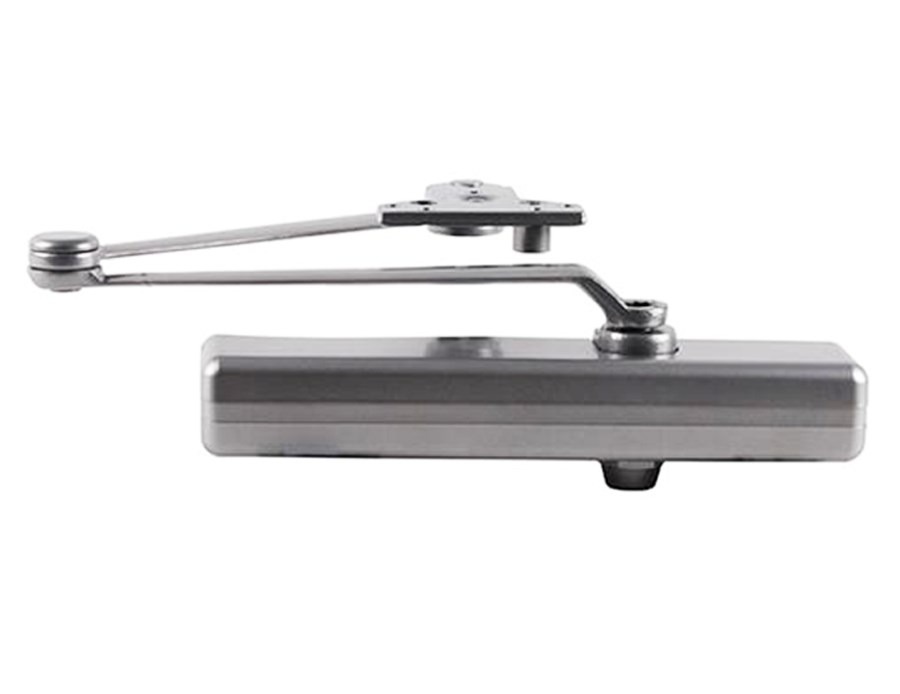

- Various model options available – Regular arm with PA shoe, Cush-N-Stop arm, Delayed Action, Extra Duty Arm, Hold Open Arm, Hold Open Cush-N-Stop Arm, Spring Cush-N-Stop Arm & Spring Hold Open Cush-N-Stop Arm
- CE Certification does not apply to the 1461 Cush-N-Stop arm, Delayed Action, Extra Duty Arm, Hold Open Arm, Hold Open Cush-N-Stop Arm, Spring Cush-N-Stop Arm & Spring Hold Open Cush-N-Stop Arm
- The following models can only be used on the push side of the door – Cush-N-Stop arm, Extra Duty Arm, Hold Open Cush-N-Stop Arm, Spring Cush-N-Stop Arm & Spring Hold Open Cush-N-Stop Arm
- Delayed action operated from 160° down to 75° (pull side), 180° down to 95° (push side) and is adjustable up to 60 seconds
- Suits internal doors up to 1524mm wide and perimeter doors up to 1220mm
- LCN 1461 is power size adjustable sizes 2-5 and comes complete with peel-n-stick installation templates
- Suits doors up to 136 kilos
- Non-handed for right and left swinging doors
- Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
- Separate regulation of general closing speed and latching speed
- Joints in arm and shoe adapt to uneven trim
- Reversible shoe to boost latching power on double lever arms
- Ideal for standard duty situations on internal and perimeter doors likely to experience high traffic
- UK Fire Certification – BS EN 1634-1:2014 (timber doors) – 120 mins (excluding above mentioned models)
- WFRC No. 142058
- EN 1154: 1996 + A1: 2002/AC:2006
