Description

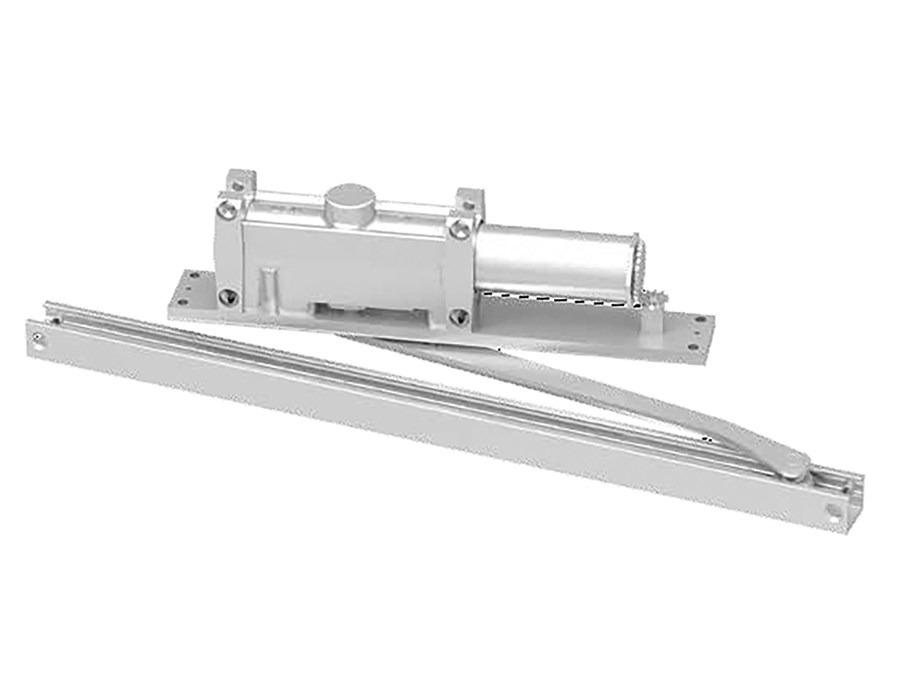

LCN 2010 Series Concealed Door Closers
- Heavy duty closer complete with backcheck
- Closer concealed in frame
- Available power size EN5 (Model: 2015) or EN6 (Model: 2016)
- Size 5 suits interior doors up 1372mm and perimeter doors up to 1067mm
- Size 6 suits interior doors up 1524mm and perimeter doors up to 1220mm
- Track can accept hold open clip and / or bumper assembly
- Suits doors up to 136 kilos
- CE Certified when mounted in frame
- Heavy duty and durable for use in high traffic / high abuse situations
- Handed for clockwise (left hand) and anti-clockwise (right hand) closing doors
- Can be used on aluminium, hollow metal, or wooden doors and frames
- Head frame requires minimum 102x102mm section
- Concealed arm and track sit in door top rail
- UK Fire Certification in accordance with BS EN 1634-1:2014 (timber) – 60 mins
- WFRC No. 142058
- EN 1154: 1996 + A1: 2002/AC:2006
