Description

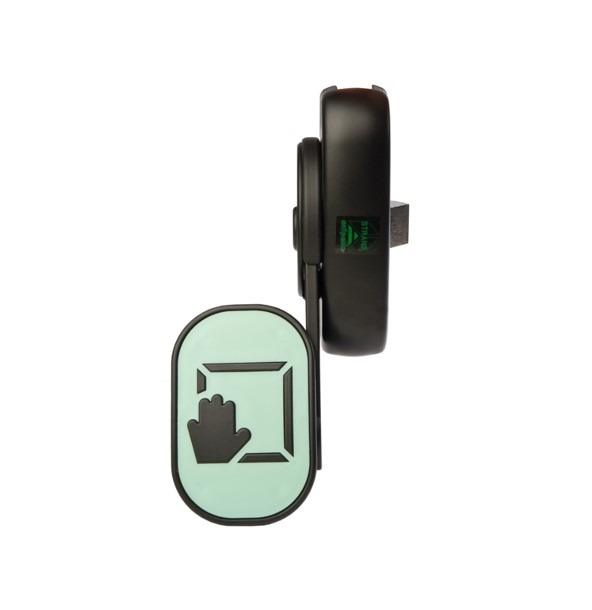

The Strand Hardware modular push pad device range comprises of a full width touch bar and modular components. It provides 1, 2 or 3 point latching (with horizontal or side pullman latches) and 2 or 3 point latching (horizontal or side entry pullmans)
- Standard devices suit doors up to 2583mm(h). Larger door variations are available to suit doors up to 3150mm(h)
- Suitable for office and buildings where surroundings are familiar
- Outside access devices are sold separately
- Push pad features a green photoluminescent insert
- Fully reversible
- Dogging facility is available (latch hold back) but should not be used on fire / smoke door assemblies – contact us for prices if this function is required
- Microswitching is also available, please enquire for pricing
- Supplied with timber door keeps as standard. PVC-U, aluminium and steel door strikes are also available. Please advise if required when ordering
- The following finishes are available Silver (EPS) 20, Black (EPB) 01, White (EPW) 25 & Satin Stainless Steel Plated (SSSP) 44. Other plated finishes and RAL colours are available upon request, please enquire for pricing.
- EN179:2008 (Classification: 3-7-7-B-1-4-4-2-B-A)
- PH352 Push Pad Latch
- PH356 Three Point Push Pad Bolt
- PH358 Three Point Push Pad Horizontal Latches
