Description

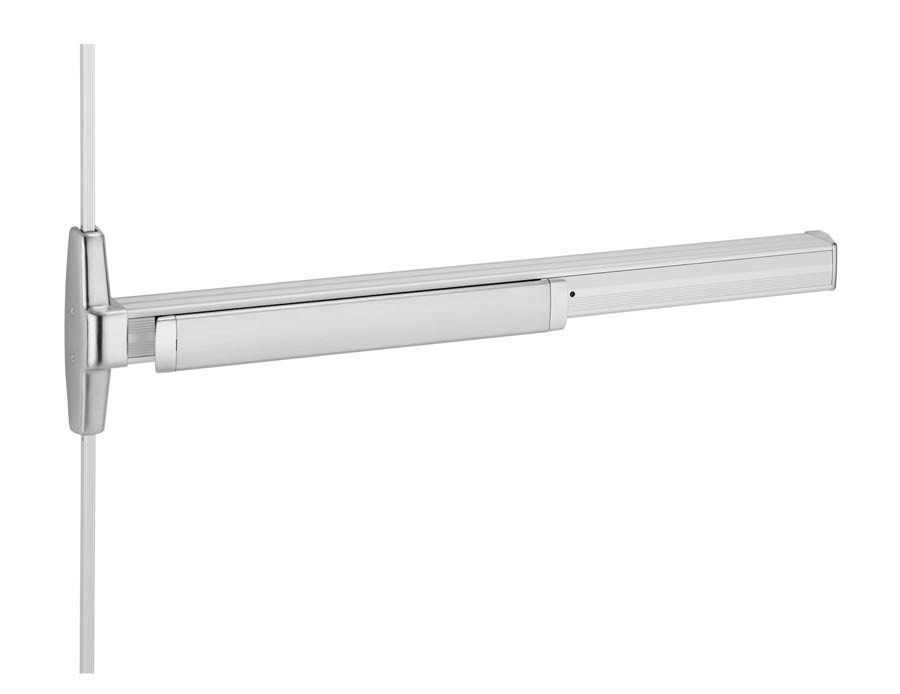

Von Duprin 33A Heavy Duty Touch Bar Series
- Standard device functions – Exit Only, Dummy Trim, Night Latch (key retracts latchbolt), Lever-Blank Escutcheon (passage) & Thumbturn
- Fully reversible – Suits left or right hand doors
- Device suits door widths of 915mm or 1220mm
- 33A reversible panic latch and 3327A vertical panic bolt
- Standard finish US28 (628) Anodized Aluminium – Other plated finishes are available on special request. Please enquire
- EL3327A Suits doors up to 2134mm high. Extended top rods are available
- EL3327A Comes complete with roller strike and bottom strikes 248L-4 and 304L. Other strikes are available on request
- EL33A Comes complete with roller strike. Other strikes are available on request
- Hex key dogging holds back the latch bolt allowing free swinging operation. CD – Cylinder Dogging & LD – Less Dogging are available on request
- Comes complete with fixings for both metal and timber doors
- Friction free deadlocking latches cannot be depressed from the outside
- The device should be installed at a height between 900mm and 1100mm from finished floor level in accordance with BS EN 1125: 2008. In a building that is predominantly used by young children a lower fixing height can be used
- Various optional external trims are available
- EN 1634-1:2000 UK Fire Certification
- WFRC No. C132276 120mins, BS EN 1125: 2008
- Ideal for heavy duty situations on narrow stile perimeter doors and internal doors
