Description
Von Duprin 99 Series Heavy Duty Electric Latch Retraction Exit Devices
- Standard device functions – Exit Only, Dummy Trim, Night Latch (key retracts latchbolt), Lever-Blank Escutcheon (passage) & Thumbturn
- Fully reversible – Suits left or right hand doors
- Device suits door widths of 915mm or 1220mm

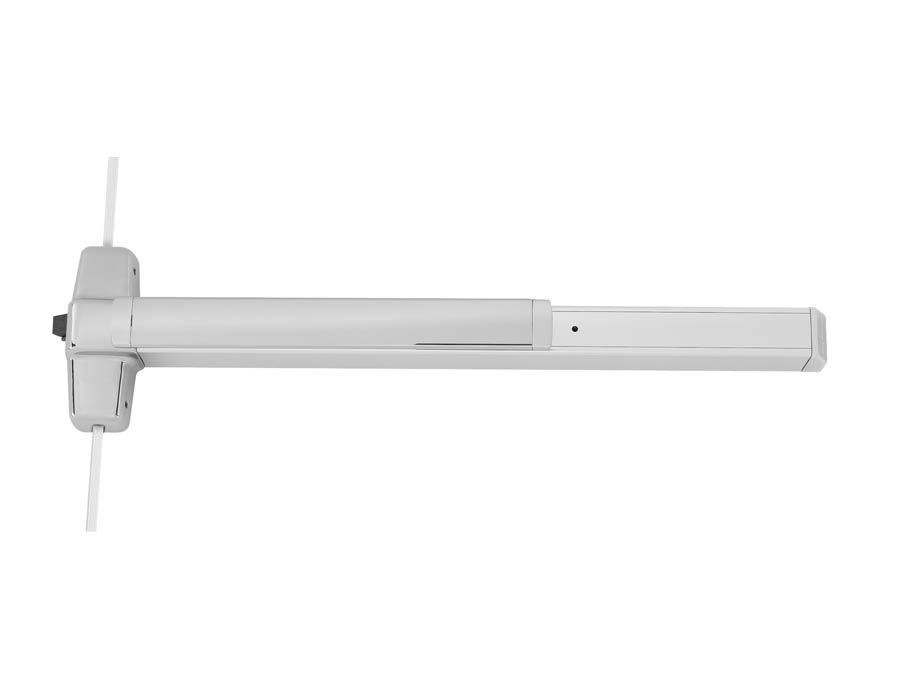

- EL99EO Single Point Electronic Latch Exit Device, EL9927EO Two Point Vertical Rod Electronic Exit Device, EL9957EO Three Point Vertical Rod Electronic Exit Device
- Standard finish US28 (628) Anodized Aluminium – Other plated finishes are available on special request. Please enquire
- EL9927A Suits doors up to 2134mm high. Extended top rods are available
- EL9927A Comes complete with 299 roller strike and bottom strikes 248L-4 and 304L. Other strikes are available on request
- EL99A Comes complete with 299 roller strike. Other strikes are available on request
- Hex key dogging holds back the latch bolt allowing free swinging operation. CD – Cylinder Dogging & LD – Less Dogging are available on request
- Comes complete with fixings for both metal and timber doors
- Friction free deadlocking latches cannot be depressed from the outside
- The device should be installed at a height between 900mm and 1100mm from finished floor level in accordance with BS EN 1125: 2008. In a building that is predominantly used by young children a lower fixing height can be used
- Various optional external trims are available
- EN 1634-1:2000 UK Fire Certification
- WFRC No. C132276 120mins, BS EN 1125: 2008
- PAS 1188-1:2009. Flood Protection Products. Specification. Part 1: Building Aperture Products. This product is certified to be used on outward opening flood defence doors. Certificate: PAS 1188-1:2009. Flood protection products. Specification. Part 1: Building Aperture Products
- PAS 1188-1 is applicable to flood protection that is used in the temporary sealing of building apertures and entrances. Suitable in the event of static flood water rising up to a level of 600mm and 900mm above floor level
- Ideal for heavy duty duty applications on perimeter and internal doors where architectural grade safe egress is require in panic emergency situations
- EL – Electric Latch retraction allows the remote unlatching of the panic device through a controller. The door can remotely be converted into passage mode allowing a push – pull operation of the door. The powerful solenoid retracts the latch bolt momentarily or for extended periods of time
- EL devices are ideal for use in conjunction with door operators and can be used in fire-rated applications when controlled by an automatic fire alarm
- Solenoid Specs: Continuous Duty 24VDC, Current Inrush 16 Amps, Current Holding 0.3 Amps
- Solenoid Resistance: grn-yel 1.2-2 OHMS, grn-org 106-150 OHMS
- Power transfer, power supply and controller supplied separately
